Do you have a tank or other structure in which you need to be able to control and weigh the contents? A weigh module allows you to take a non-conventional structure and turn it into a scale.

These structures can include hoppers, tanks, vessels, conveyors, and even OEM machinery. By using tension or compression technology, System Scale can help you turn these industrial components into scales by using weigh modules. This allows users a great deal of flexibility with capacities that range from 1 lb to 500,000+ lbs.

Weigh modules available in many styles and configurations

Weigh modules come in a multitude of styles and configurations that allow you to adapt them to any dry, wet, or hazardous location where you require flexible weighing options. If you need a small weigh module solution, System Scale even offers access to a line of ultra-compact high precision weigh modules that are typically built into machines with 0.01mg of readability.

Hygienic MultiMount Weigh Module

System Scale is proud to offer the Hygienic MultiMount™ Weigh Module which allows you to add weighing capabilities to your process by converting a tank, conveyor or other structure into a scale. These weigh modules fulfill hygienic design requirements, including those from EHEDG and NSF, for minimal contamination risk and easy cleaning.

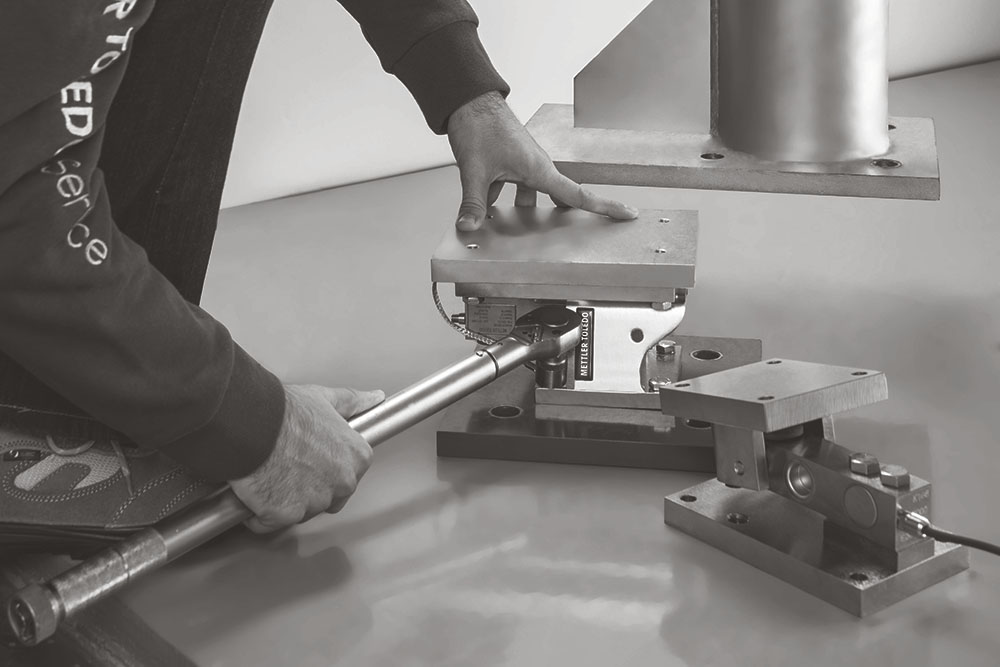

The weigh module's proven rocker-pin design and metrologically approved load cells provide the highest level of weighing accuracy. The Hygienic MultiMount™ weigh module features SafeLock™ capabilities, which ensure easy, safe and trouble-free installation and operation right from the start.

Typical weigh module configurations

In addition to the Hygienic MultiMount™, we offer a full line of weigh modules that convert a tank or other structure into a scale. Whether you have a need in your laboratory solution or your industrial application, we have the right product offering from replacements to complete weigh module systems.

  • Compression Weigh Modules: For floor supported tanks and conveyors, these weigh modules include integrated safety features and global approvals like OIML, NTEP and for hazardous area.
  • High Precision Weigh Modules: High speed and high accuracy weigh modules that are tailored to the needs of the equipment or machinery for simple integration.
  • Tension Weigh Modules: For suspended tanks and hoppers. Integrated safety features and global approvals like OIML, NTEP and for hazardous area.

In addition, we offer a wide range of mount styles, including weigh modules that are guaranteed to be waterproof.

Other weigh module configurations available

In addition to the more common configuration types listed above, we also offer solutions for even the most unique needs, offering products such as:

  • Single and Double Shear Beam Cells
  • S or Z Block Tension Load Cells
  • Single Point Load Cells
  • Canister / Ring Style Load Cells
  • Vehicle Load Cells and Mounts

For more information on the revolutionary PDX™ vehicle load cells, visit our truck scales and rail scales web pages.

Let System Scale find the right industrial weigh module for your specific needs. Request more information or contact one of our dedicated sales engineers to learn more.
